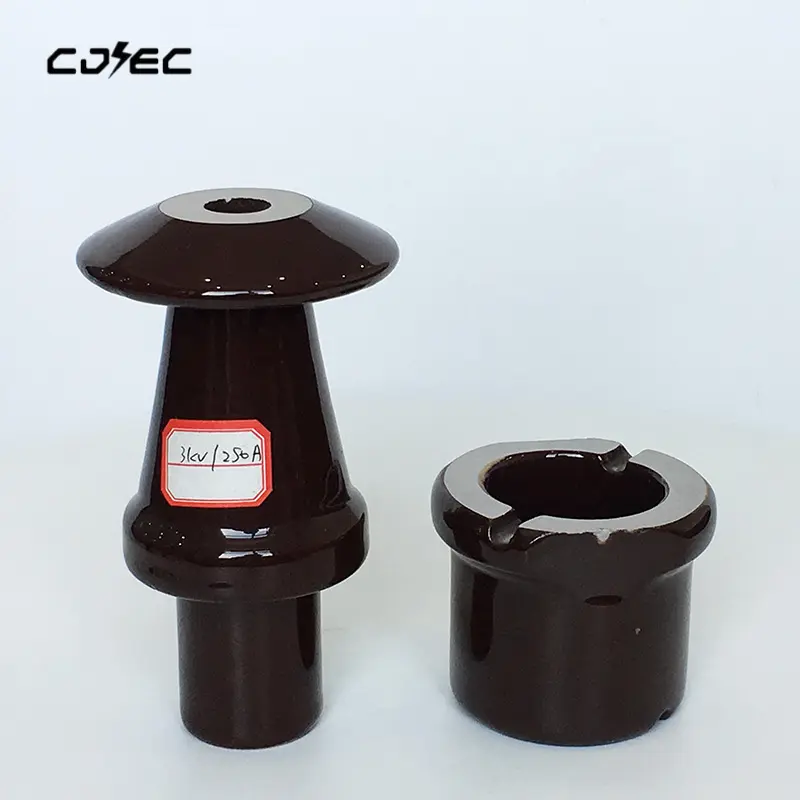

LOW TENSION PORCELAIN /CERAMIC BUSHING DT3KV 250A

Video

Drawing

DIN 42539 3KV-250A

Parameter table

Bushings are manufactured to DIN 42539
PART NUMBER	DESCRIPTION	Kv RATING	I RATING	TANK HOLESIZE	BIL	PF DRY	PF WET	CREEPAGE	STEM CONNECT
DT 3/250	DIN 42539 3/250	3	250	39	40	14	10	120	M12
DT 3/630	DIN 42539 3/630	3	630	45	40	14	10	120	M20
DT 3/1000	DIN 42539 3/1000	3	1000	56	40	14	10	125	M30
DT 3/2000	DIN 42539 3/2000	3	2000	70	40	14	10	125	M42
DT 3/3150	DIN 42539 3/3150	3	3150	90	40	14	10	125	M48
DT 3/4500	DIN 42539 3/4500	3	4500	119	40	14	10	130	M55
DT 3/6500	DIN 42539 3/6500	3	6500	119	40	14	10	130	M75
