12-36kv Transformer Porcelain Bushings DIN 42531 30NF250 for Transformer

Dear customers,If you have any other questions, please feel free to contact us.

Product Description

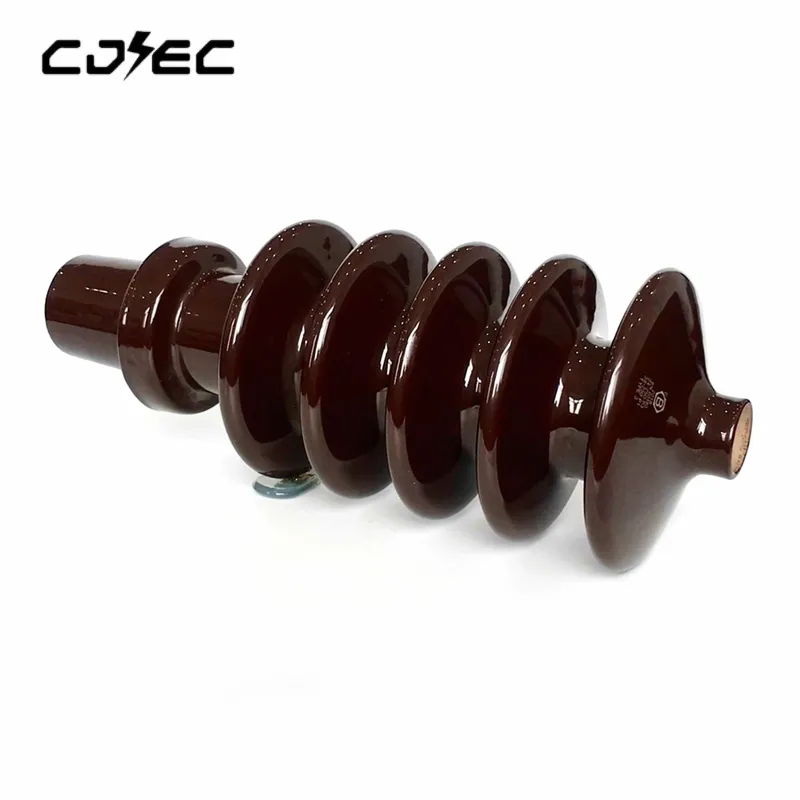

12-36kv Transformer Porcelain Bushings DIN 42531 30NF250 for Transformer
12-36kv Transformer Porcelain Bushings DIN 42531 30NF250 for Transformer

Bushings are manufactured to DIN 42530,42539,42531,52432,42533,42534
PART NUMBER DESCRIPTION Kv RATING I  RATING TANK HOLESIZE BIL PF DRY PF WET CREEPAGE STEM CONNECT
30NF250 DIN 42531 30NF250 36 250 78 170 70 – 607 M12
30NF630 DIN 42532 30NF630 36 630 90 170 70 – 662 M20
30NF1000 DIN 42533 30NF1000 36 1000 110 170 70 – 635 M30
30NF2000 DIN 42533 30NF2000 36 2000 135 170 70 – 635 M42
30NF3150 DIN 42533 30NF3150 36 3150 135 170 70 – 635 M48
