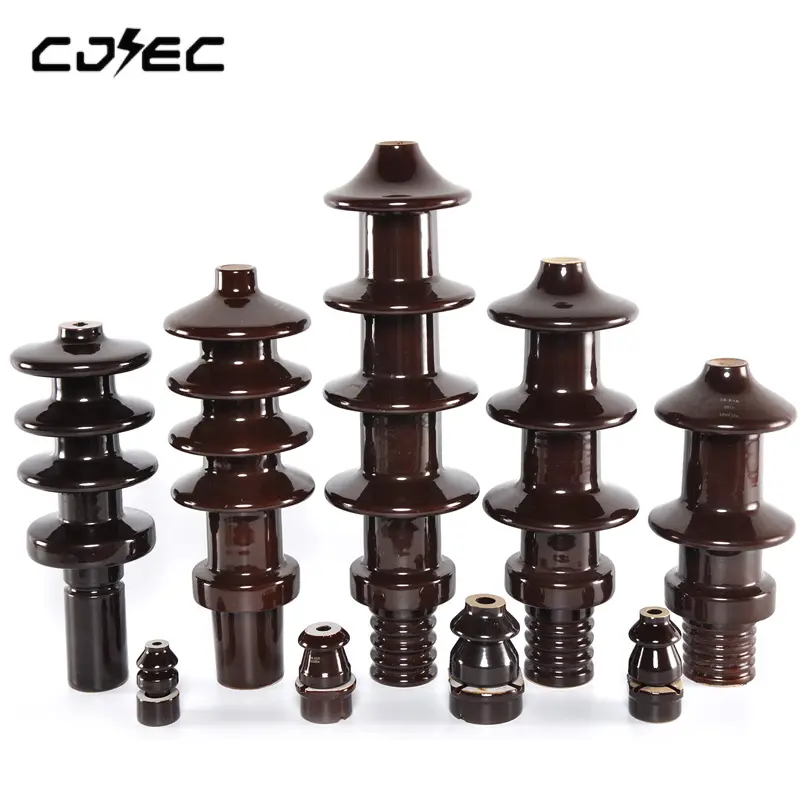

12kv 10NF250 High Voltage Transformer Porcelain Bushing

12kv 10NF250 High Voltage Transformer Porcelain Bushing (8)

Bushings are manufactured to DIN 42531,52432,42533
PART NUMBER	DESCRIPTION	Kv RATING	I RATING	TANK HOLESIZE	BIL	PF DRY	PF WET	CREEPAGE	STEM CONNECT
10NF250	DIN 42531 10NF250	12	250	78	75	28	–	305	M12
10NF630	DIN 42532 10NF630	12	630	90	75	28	–	305	M20
10NF1000	DIN 42533 10NF1000	12	1000	110	75	28	–	295	M30
10NF2000	DIN 42533 10NF2000	12	2000	135	75	28	–	295	M42
10NF3150	DIN 42533 10NF3150	12	3150	135	75	28	–	295	M48
